Connect a new device to an installation

How to connect a new device to an installation

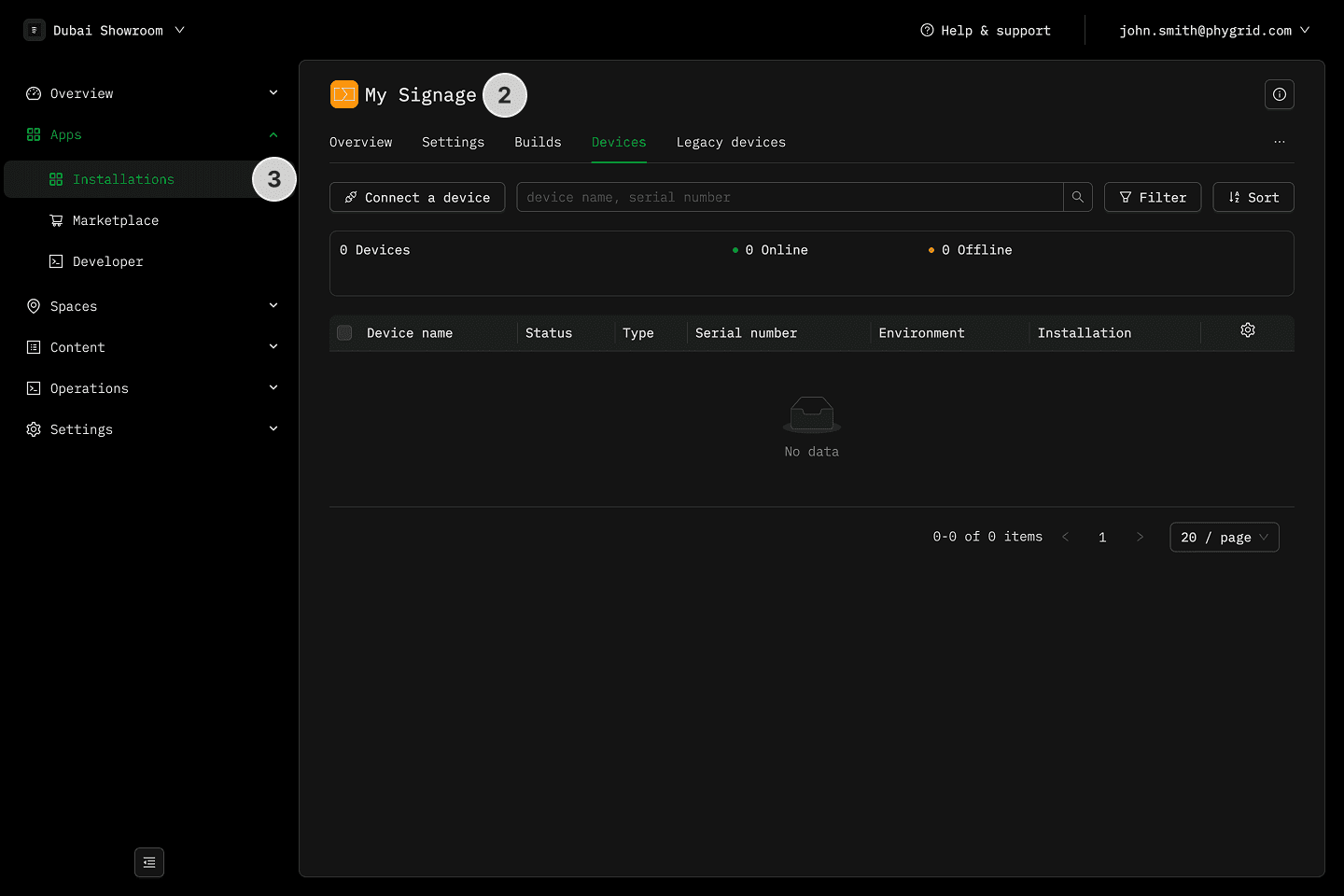

  1. Navigate to Apps โ†’ Installations

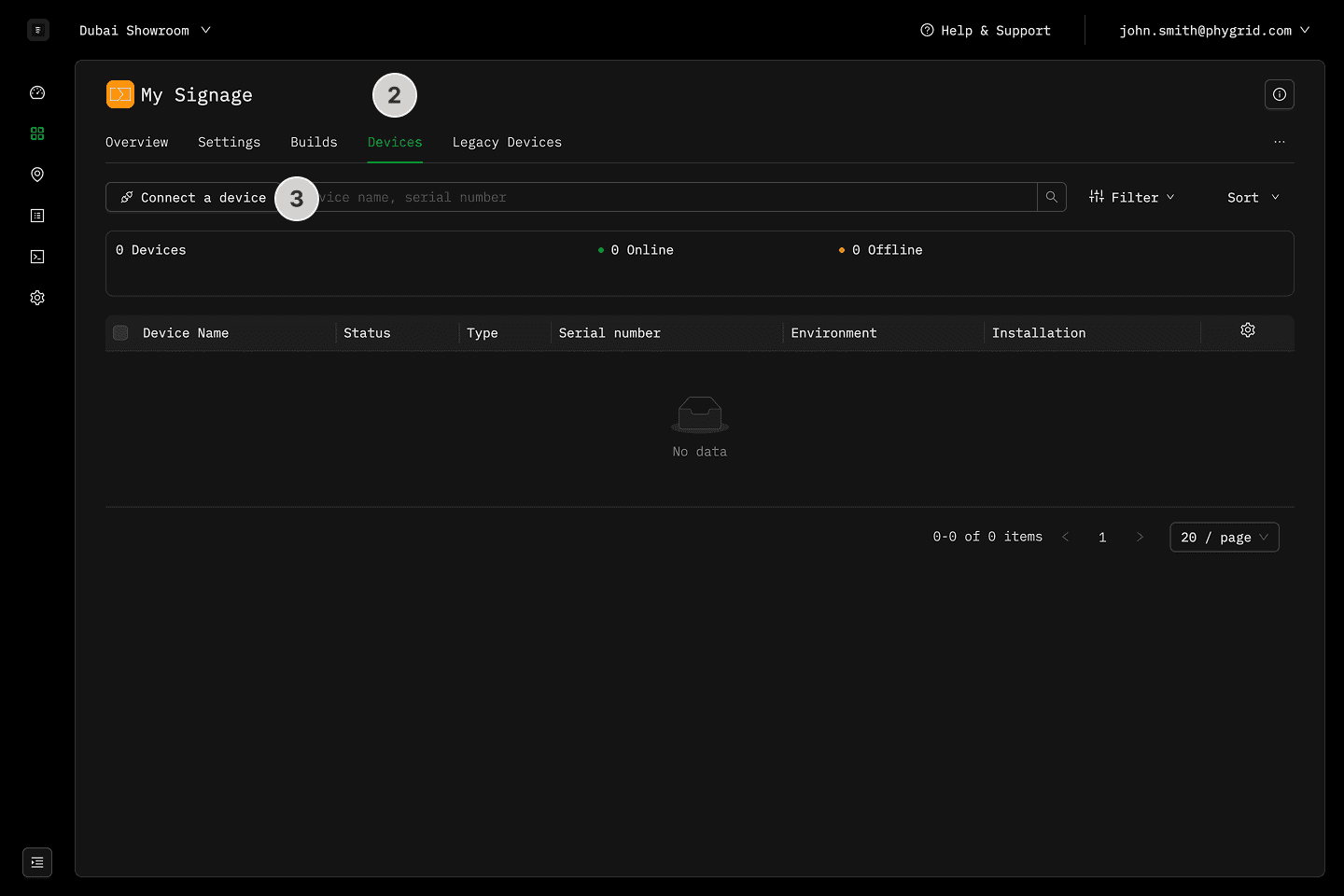

  2. Find your installation, open, and go to Devices tab
  3. Click Connect a device

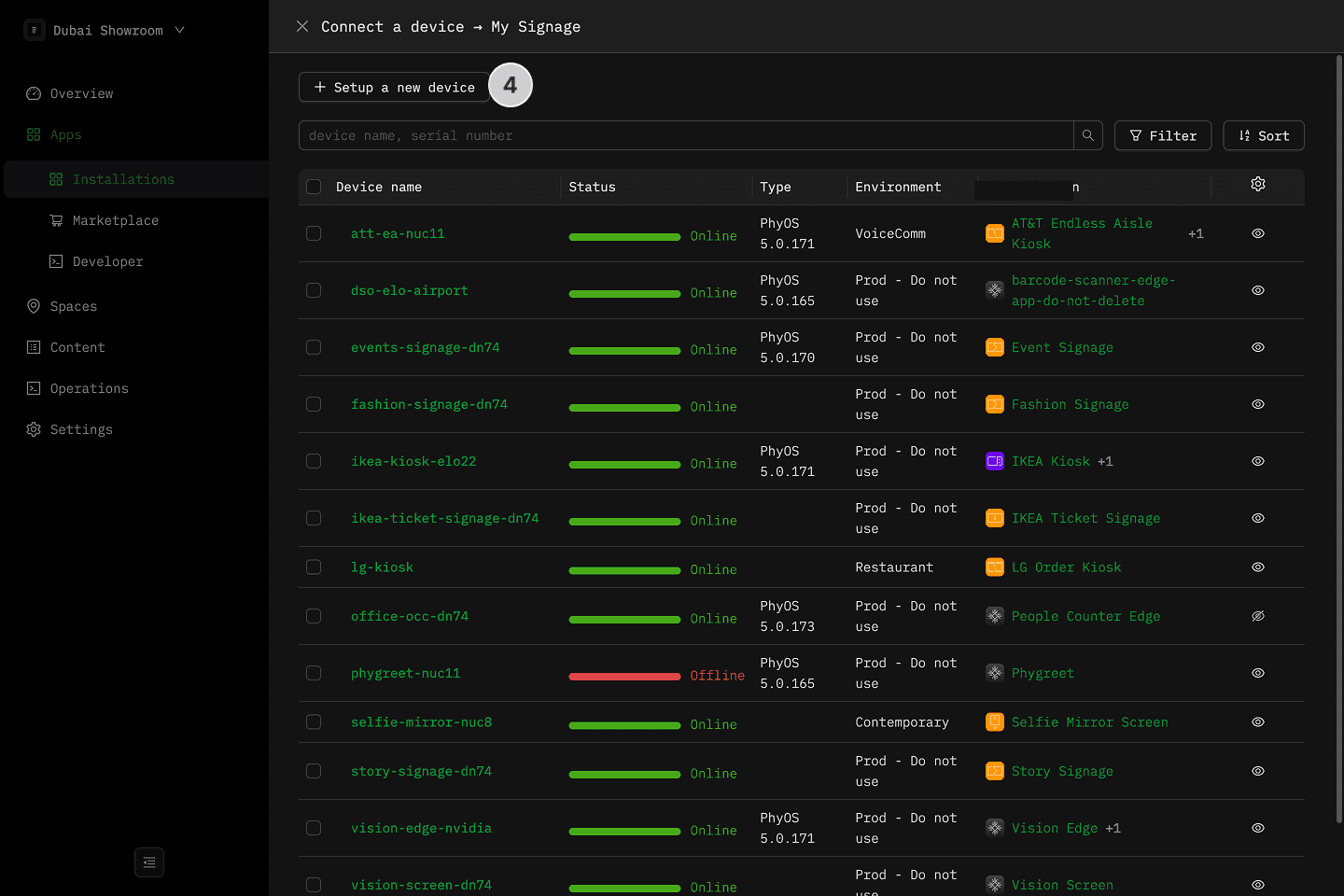

  4. Click Setup a new device

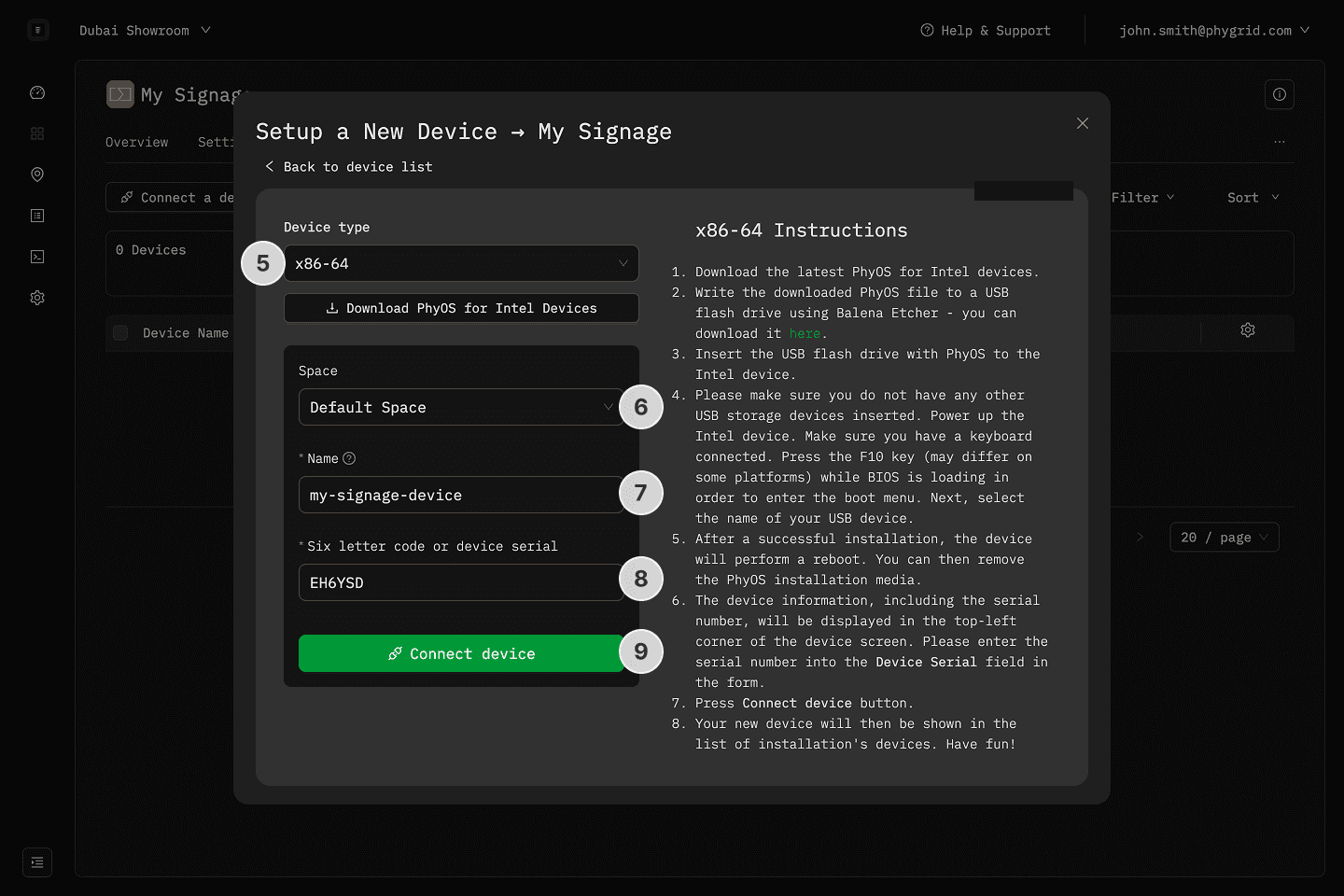

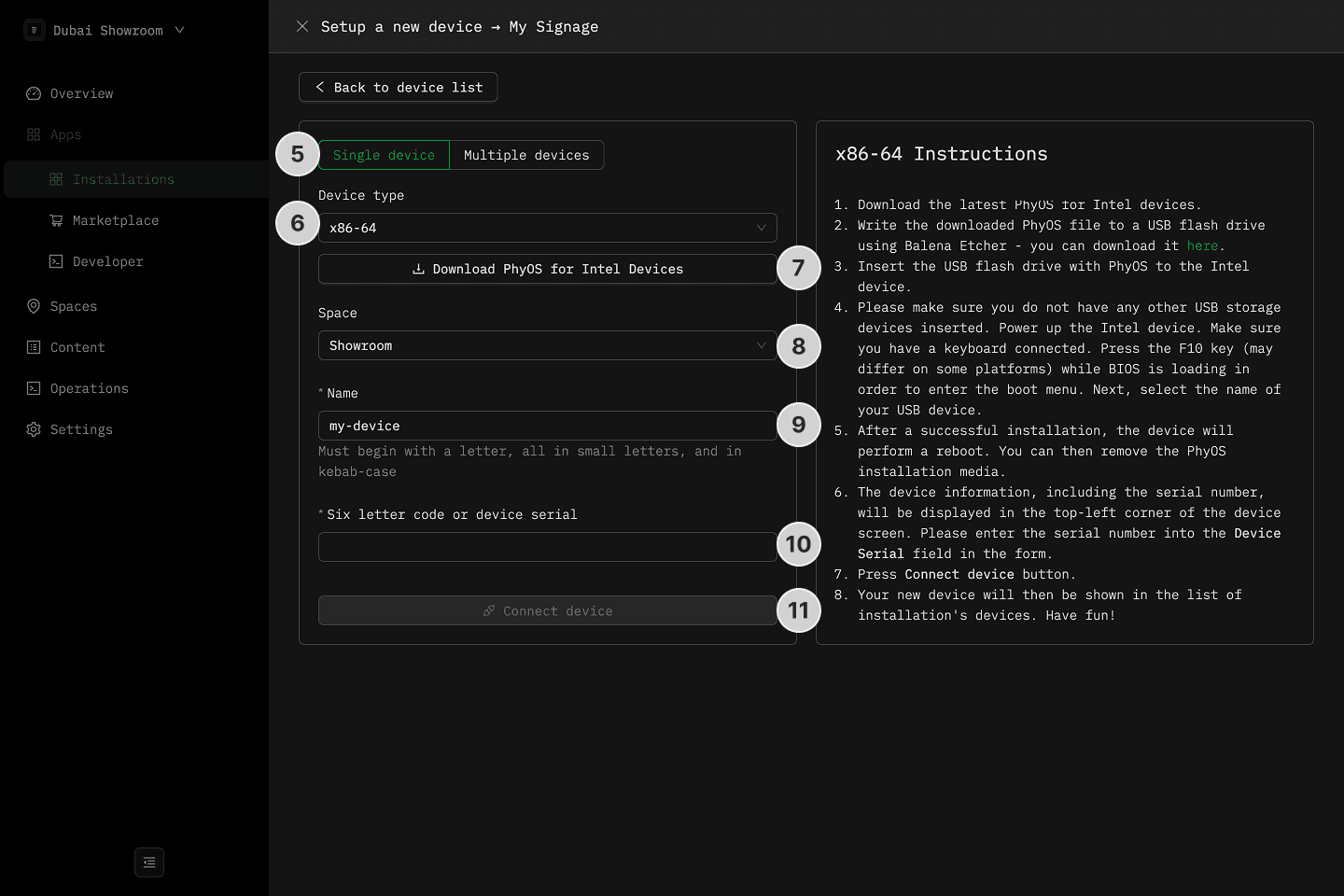

  5. Select the Single Device mode
  6. Select the device type
    • For Intel or AMD devices, leave the x86-64 option
    • For other hardware, choose the appropriate option
  7. Ensure the device is running PhyOS and is connected to the internet
    • If using a Phygrid device, it should come preinstalled with PhyOS
    • For custom devices, install PhyOS, then connect to the internet
  8. Pick a Space for your device or leave it in the Default Space
  9. Name your device with a unique name
  10. Enter the six-letter provisioning code displayed on the device screen or the device serial
  11. Click Connect the device

Once connected, the device will load the application and its content.

Step image 1
Preview
Step image 2
Preview
Step image 3
Preview
